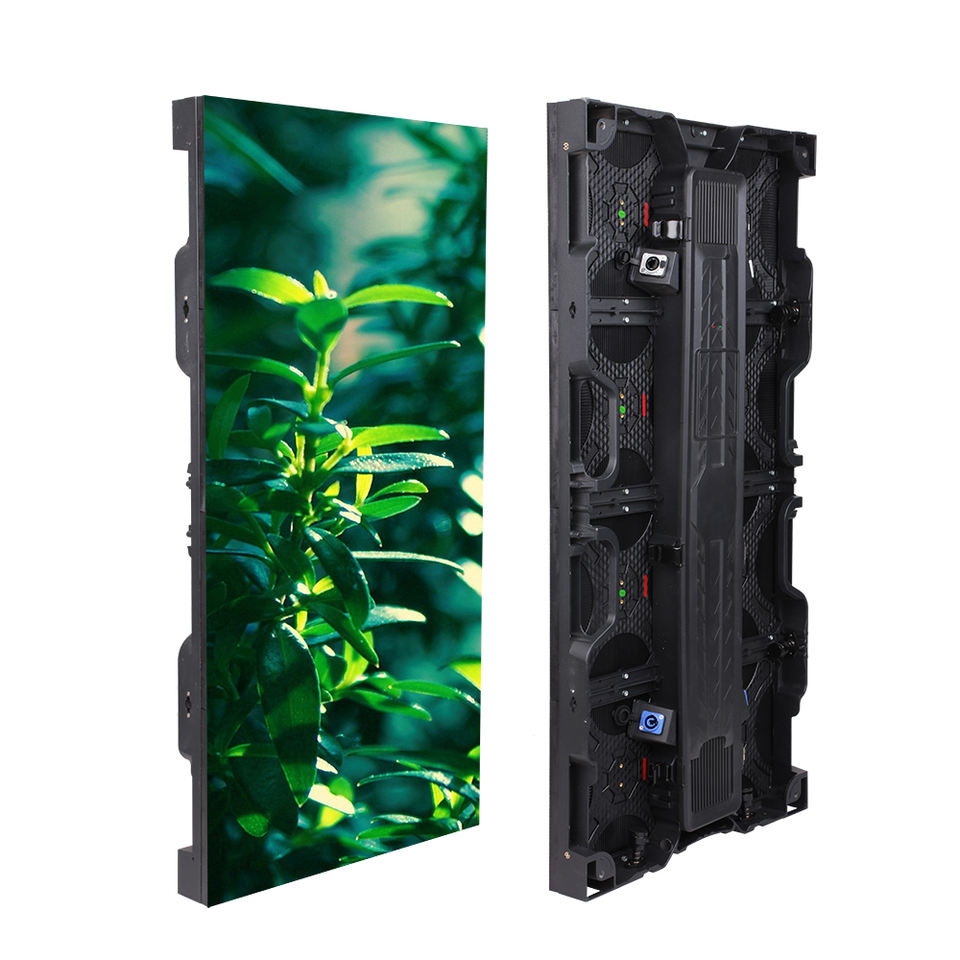

Outdoor Rental LED Display
Full Color Easy Installation Rental Digital Signage Commercial Hd Smd P3.91 Wall Video Led Outdoor Advertising Display Screen
- Pixel Pitch: 3.91mm
- Brightness: 800-1000cd/sqm
- Cabinet size: 500x500mm/500x1000mm
- Refresh rate: 1920Hz-3840Hz
- Product description: Full Color Easy Installation Rental Digital Signage Commercial Hd Smd P3.91 Wall Video Led Outdoor Advertising Display Screen - Buy Digital Signage And Displays,Led Screen,P3.91 Led Display Product on
Product Details
|
Item
|
Outdoor P3.91
|
Outdoor P4.81
|
Outdoor P2.976
|
||
|
Module
|
Panel Dimension
|
250mm(W) * 250mm(H)
|
250mm(W) * 250mm(H)
|
250mm(W) * 250mm(H)
|
|
|
Pixel pitch
|
3.91mm
|
4.81mm
|
2.976mm
|
||
|
Pixel Density
|
65536 dot/m2
|
43264 dot/m2
|
112896 dot/m2
|
||
|
Pixel configuration
|
1R1G1B
|
1R1G1B
|
1R1G1B
|
||
|
LED specification
|
SMD1921
|
SMD2727/SMD1921
|
SMD2121
|
||
|
Pixel resolution
|
64 dot * 64 dot
|
52 dot * 52 dot
|
84 dot * 84 dot
|
||
|
Average power
|
45W
|
45W
|
35W
|
||
|
Panel weight
|
0.6KG
|
0.65KG
|
0.5KG
|
||
|
Cabinet
|
Cabinet size
|
500*1000mm*90mm, 500*500*90mm
|
500*1000mm*90mm, 500*500*90mm
|
500*500*85mm,500*1000*85mm
|
|
|
Cabinet Resolution
|
128 dot * 256 dot, 128*128 dot
|
104 dot * 208 dot, 104 dot * 104 dot
|
168*168 dot,168*336mm
|
||
|
Quantity of panel
|
8pcs, 4pcs
|
8pcs, 4pcs
|
4pcs
|
||
|
Hub connecting
|
HUB75-E
|
HUB75-E
|
26P
|
||
|
Best viewing angle
|
170/120
|
170/120
|
140/120
|
||
|
Best viewing distance
|
3-30M
|
4-40M
|
3-30M
|
||
|
Operating temperature
|
-20C°~60C°
|
-10C°~45C°
|
-10C°~45C°
|
||
|
Screen power supply
|
AC110V/220V - 5V60A
|
AC110V/220V - 5V60A
|
AC110V/220V- 5V40A
|
||
|
Max power
|
1200 W/m2
|
1200 W/m2
|
800 W/m2
|
||
|
Average power
|
600 W/m2
|
600 W/m2
|
400 W/m2
|
||
|
Technical
Signal Index
|
Driving IC
|
ICN 2037 / 2153
|
ICN 2037 / 2153
|
ICN 2037 / 2153
|
|
|
Scan Rate
|
1/16S
|
1/13S
|
1/28S
|
||
|
Refresh frepuency
|
1920-3840 HZ/S
|
1920-3840 HZ/S
|
1920-3840 HZ/S
|
||
|
Display color
|
4096*4096*4096
|
4096*4096*4096
|
4096*4096*4096
|
||
|
Brightness
|
4000 cd/m2
|
3800-4000cd/m2
|
800-1000 cd/m2
|
||
|
Life span
|
100000Hours
|
100000Hours
|
100000Hours
|
||
|
Control distance
|
<100M
|
<100M
|
<100M
|
||
|
Operating Humidity
|
10-90 %
|
10-90 %
|
10-90 %
|
||
|
IP protective index
|
IP65
|
IP65
|
IP43
|
||
Company Profile
Shenzhen Smail Technology Co Ltd is a professional LED display and LED lighting product manufacturer, integrating the R&D, manufacture, marketing and after-sales service into one. We constantly introduce the latest technique and mechanism. Now there are more than100 of high-accuracy automatic manufacture and testing device, including more than 50 SMT machine ( high-speed SMT machine, Samsung high-speed SMT machine), Reflow Solder, Automatic Tin Coat Machine, Automatic 3D Tin Coat Test SPI, Automatic LED module manufacture line, High-low temperature test chamber, Jarring Machine,Shenzhen Smail Owns a number of software and hardware design patents .We have already passed High-tech Enterprise, ISO9001, CCC, CE, FCC, RoHS Qualification Authorization, as well as other test Quality Certification. At the same time, we complete our product series as demands from market.Because of high quality product with competitive prices, professional solutions and good after-sales services, our company gets high praise from customers all over the world. We will keep supplying more good products and services to our customers. Our Targets is satisfying the demands of consumers in an all-round way. Hope we can work a better prospects of LED opt-electrical industry.
FAQ
Q1:Are you a manufacturer or trading company?
Q2:How does your factory do regarding quality control?
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 17 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority.Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication
.
Q3:What is your MOQ?
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
Q6:How long is the warranty?
A6:The standard warranty is 1 year. It could be longer upon request.
A6:The standard warranty is 1 year. It could be longer upon request.
Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
